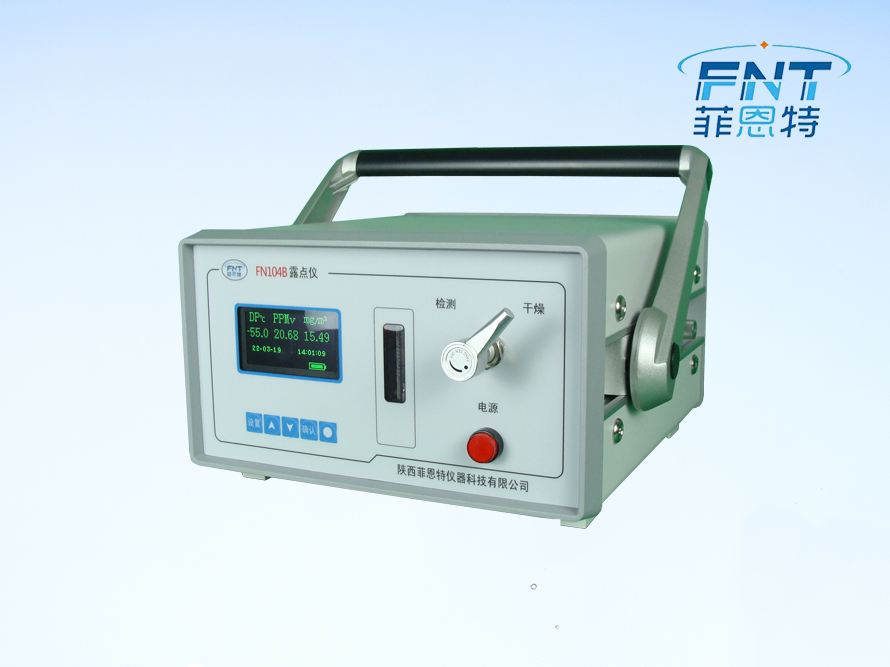

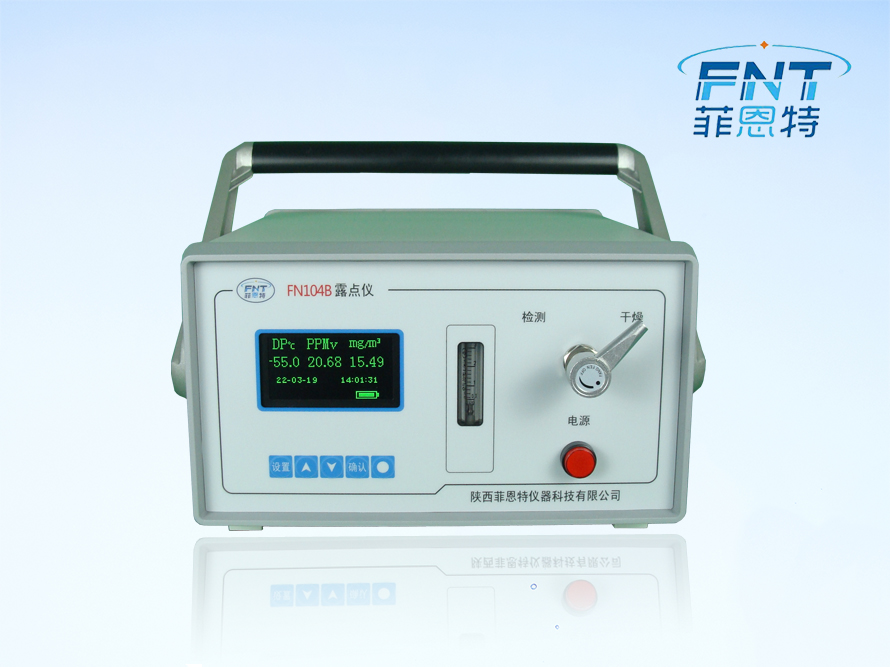

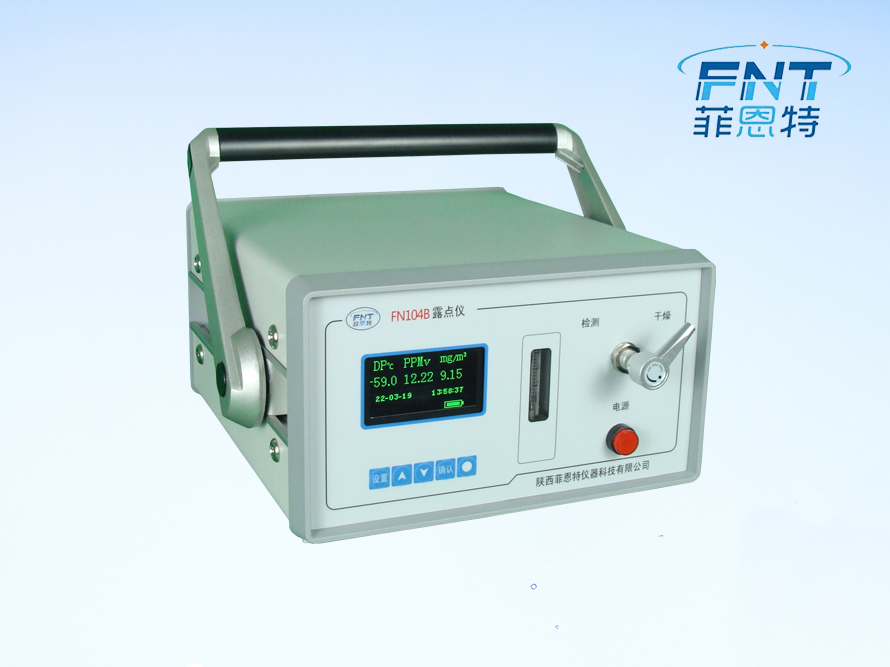

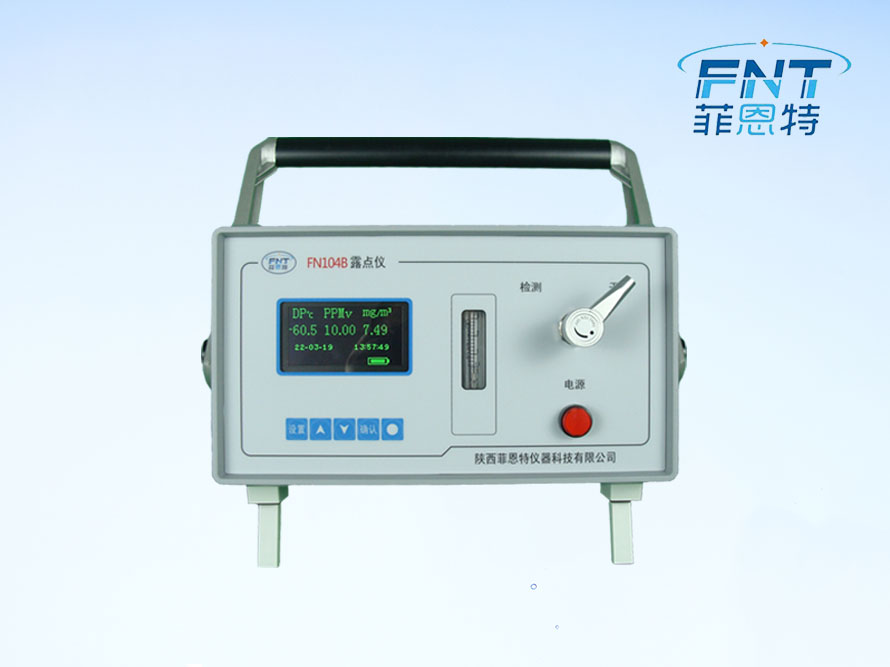

FN104B Portable Dew-point Meter adopts imported dew-point sensor with high response speed and sensitivity; it is powered by AC/DC and will be an intrinsically-safe explosion-proof instrument when powered by DC; the portable design makes operation easy and simple; the meter is applicable to the measurement of trace moisture content in various gases and suitable for a variety of cases requiring quick moisture content measurement and explosion protection.

Application fields:

Petroleum and chemicals, natural gas, gases for industrial purposes, semiconductor industry, drying industry, food industry, electric power industry, mechanical manufacturing, air separation industry, and pharmaceutical industry

Instrument characteristics:

Imported capacitive dew-point sensor featuring quick response and high sensitivity;

128×64 lattice OLED display, self-luminous, with wide angle of view (above 160℃) and Chinese operation menu;

Simultaneous display of dew point, volume ratio (PPm/V), and absolute humidity (mg/m3); intuitive readings eliminating the need for manual meter reading;

AC/DC power supply automatic switchable; lithium-ion battery available for continuous operation of over 12 hours once fully charged;

Automatic storage of measured data at a time interval that can be set at will; the recorded data can be displayed in the form of curve or list for the convenience of browsing and viewing;

Alarm point can be set at will within the range;

Built-in air extracting pump and external filter can be added upon selection.

Technical parameters:

1. Measurement range: -100～+20℃ ,-80～+20℃ , -60～+60℃, intermediate range optional;

2. Accuracy: ≤ ±1.5℃ (above -60℃);

                    ≤ ±2℃    (below -60℃);

3. Repeatability: ≤ ±1℃;

4. Resolution: 0.1℃;

5. Sample gas flow: 1000～1500 mL/min;

6. Sample gas pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

7. Response time: T90 ≤ 3 min;

8. Operating power supply: 1. 220 VAC±10%, 50 Hz±5%;

                                             2. Rechargeable lithium-ion battery built in the instrument;

9. Operating environment: Temperature: －5℃～＋45℃;

                                            Humidity: ≤ 90% RH;

10. Overall dimensions: 256 mm (W) × 160 mm (H) × 330 mm (D);

11. Weight: About 4.5 kg
