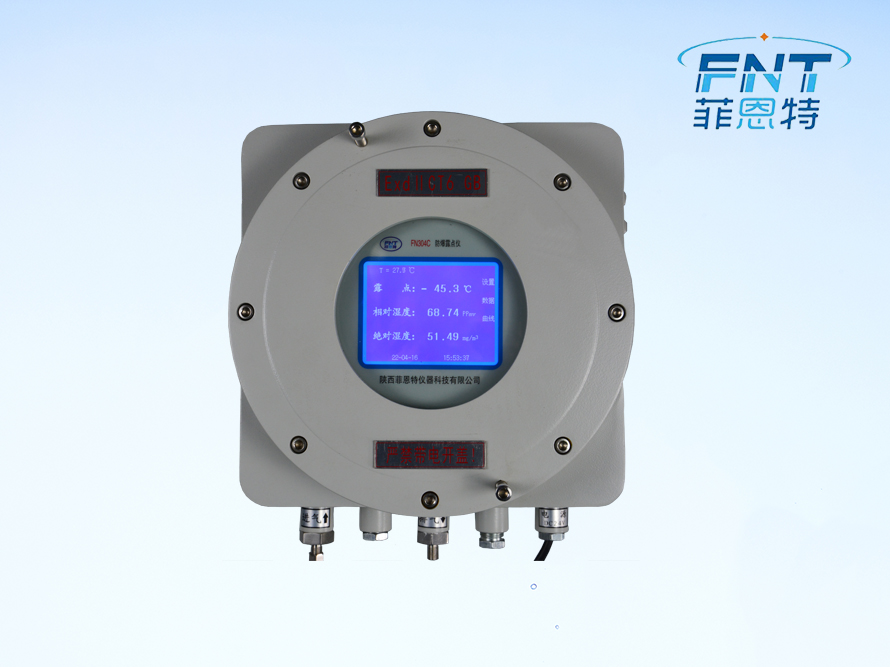

FN304C Explosion-proof Dew-point Meter adopts imported capacitive dew-point sensor with high response speed and sensitivity and easy and simple to operate. It is applicable to the measurement of trace moisture content in various gases and suitable for a variety of locations needing explosion protection.

Application fields:

Petroleum and chemicals, natural gas, gases for industrial purposes, semiconductor industry, drying industry, food industry, electric power industry, mechanical manufacturing, air separation industry, and pharmaceutical industry

Instrument characteristics:

Imported aluminum oxide capacitive dew-point sensor with high response speed and sensitivity;

Large-screen 320×240 lattice LCD, with clear and concise Chinese operation menu;

Simultaneous display of dew point, volume ratio (PPm/V), and absolute humidity (mg/m3); intuitive readings eliminating the need for manual meter reading;

Several kinds of display interfaces, meeting the operation needs of customer to the largest extent;

Automatic storage of measured data at a time interval that can be set at will; the recorded data can be displayed in the form of curve or list for the convenience of browsing and viewing;

Upper/lower limit alarm output can be set at will within the range;

Standard RS232 or RS485 communication interface available for two-way communication with computer;

Isolated explosion-proof case adopted, so that the instrument can be directly installed on the site.

Technical parameters:

1. Measurement range: －100.0～+20.0℃;－80.0～+20.0℃;

2. Accuracy: ≤ ±1.5℃ (above -60℃);

                    ≤ ±2℃ (below -60℃);

3. Repeatability: ≤ ±1.5℃;

4. Preheating time: ≤ 30 min;

5. Sample gas flow: 1000～1500 mL/min;

6. Sample gas pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.25 MPa;

7. Resolution: 0.1℃;

8. Analog output: 4～20 mA;

9. Contact capacity: 220 VAC, 1A     24 VDC, 1A;

10. Operating power supply: 220 VAC±10%, 50 Hz±5%;

11. Operating environment: Temperature: －5℃～＋45℃;

                                              Humidity: ≤ 90% RH;

12. Explosion-proof grade: Exd Ⅱ CT6

13. Overall dimensions: 300 mm (W) × 400 mm (H) × 200 mm (D);

14. Mounting dimensions: 330 mm (W) × 300 mm (H), with the center line as benchmark;

15. Mounting mode: Wall-mounted, mounting bolt M8×50;

16. Weight: About 25 kg
