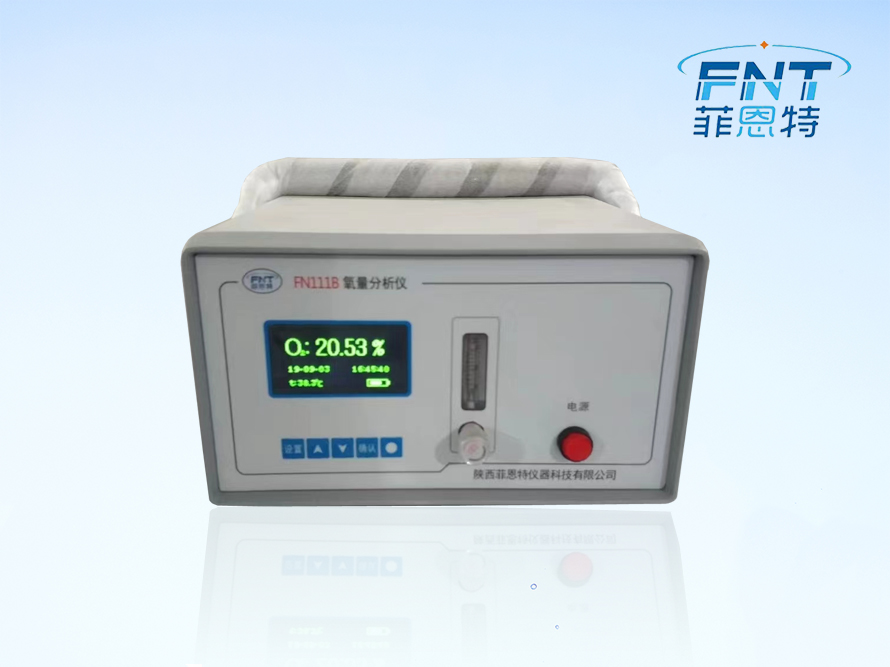

FN111B Portable Oxygen Content Analyzer is a new-type intelligent industrial portable analyzer researched and developed by combining imported high-performance electrochemical sensor with new microcomputer technology based on the principles of electrochemical detection.

Application fields:

Quick analysis on oxygen content in protective gases for high-temperature sintering furnaces of nitrogen production by air separation, chemical process, magnetic materials, and so on; in chemical, metallurgical, glass, and building material industries; and in coal gas

Instrument characteristics:

Imported fuel cell sensor adopted, featuring long service life, high accuracy, and quick response and immune to the interference of other gas components;

Automatic temperature compensation, eliminating the affect from ambient temperature;

128×64 lattice OLED display, able to simultaneously display parameters like oxygen content, date, and time;

Timed automatic storing function, and stored data available for viewing at any time;

Automatic range shifting; alarm point can be set at will within the whole range;

AC/DC power supply and flexible operation; built-in lithium-ion battery available for continuous operation of approximately 15 hours once fully charged; automatic alarm in case of low battery voltage;

Built-in air extracting pump and external filter can be added upon selection.

Technical parameters:

1. Measurement range: 0.00～1.00%/2.00%/10.0%/25% O2 optional;

2. Accuracy: ≤ ±2% F.S;

3. Stability: Zero drift ≤ ±1% F.S/7d;

                  Span drift ≤ ±1% F.S/7d;

4. Repeatability: ≤ ±0.5%;

5. Sample gas flow: 300±10 ml/min;

6. Response time: T90 ≤ 15 sec.;

7. Sample gas pressure: 0.05 MPa ≤ Inlet Pressure ≤ 0.1 MPa;

8. Resolution: 0.01%;

9. Operating environment: Temperature: －5℃～＋45℃;

                                            Humidity: ≤ 90% RH;

10. Operating power supply: 1. 220 VAC±10%, 50 Hz±5%;

                                               2. Rechargeable lithium-ion battery built in the instrument;

11. Overall dimensions: 256 mm (W) × 160 mm (H) × 330 mm (D);

12. Weight: About 4.5 kg
